SRAM Apex AXS XPLR 1x12 Gravel Groupset – Wireless Shifting & Hydraulic Disc Brakes
SRAM Apex AXS XPLR 1x12 Gravel Groupset – Wireless Shifting & Hydraulic Disc Brakes
Couldn't load pickup availability
The SRAM Apex AXS XPLR 1×12 gravel groupset brings wireless electronic shifting and hydraulic disc braking to gravel rides, daily adventures and routes beyond the tarmac. Its 40T chainring and 11–44T cassette offer a 400% gearing range, with the simplicity of a single-chainring drivetrain.
At The Bike Lab, the focus is on helping you choose parts that make sense for your bike and your budget. As an independent business, there’s time for a conversation about your plans and honest advice on what’s worth changing.
Built for exploring
Apex XPLR AXS provides wireless gear changes without gear cables, with customisable shift controls through the SRAM AXS app. The clutch-equipped rear derailleur helps control the chain over rough surfaces, while flat-mount hydraulic disc brakes provide progressive braking on changing terrain.
The PG-1231 cassette fits a compatible Shimano/SRAM HG 11-speed road freehub, making it a useful option for builds using existing HG wheels. The aluminium DUB Wide crankset and 40T chainring complete a straightforward gravel setup.

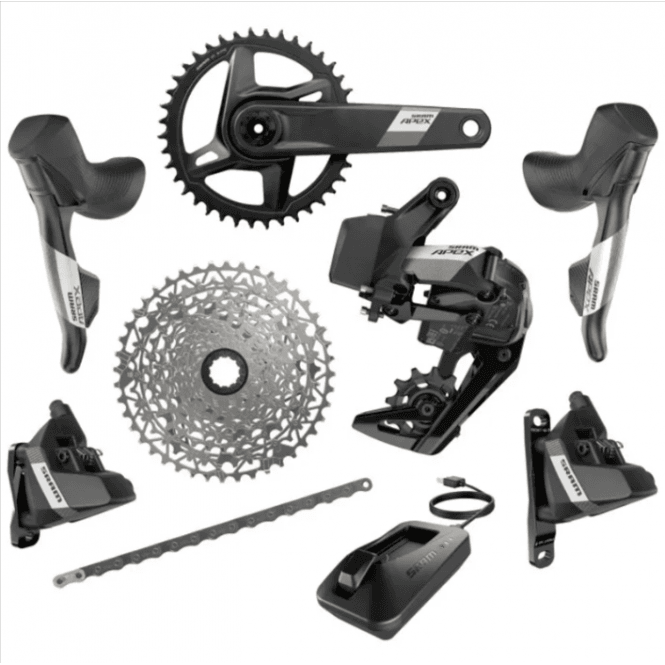

What’s included
- Apex AXS shift/brake levers and flat-mount hydraulic disc calipers
- Apex 1 DUB Wide crankset with 40T chainring — non-power-meter version
- Apex XPLR AXS 12-speed rear derailleur
- PG-1231 XPLR 11–44T, 12-speed cassette
- Apex Flattop chain with PowerLock
- SRAM AXS rechargeable battery and charger
Choose your setup
Crank lengths: 160, 165, 170, 172.5 or 175mm.
Optional rotors: no rotors, two 160mm rotors, or a 160/140mm pair. Rotors are included only when a rotor option is selected.
Compatibility and support
Requires a compatible derailleur hanger, HG freehub, flat-mount disc brake mounts and a suitable SRAM DUB Wide bottom bracket, sold separately. This 12-speed Apex derailleur uses a conventional hanger mount; it does not require a UDH frame.
For help checking your current wheels, frame or gearing, get in touch with your bike’s details. The Bike Lab can talk you through what’s needed before you order.
UK delivery only.
Specification:
Specification:
- Speeds: 12-Speed
- Drivetrain: 1× Electronic (eTap AXS)
- Cassette Range: 11–44T (400% range), PG-1231
- Crankset: 40T, aluminium Apex 1 DUB Wide, non-power-meter
- Rear Derailleur: Apex XPLR AXS 12-speed, conventional hanger mount, clutch-equipped
- Brakes: Hydraulic Disc, Flat-Mount
- Chain: SRAM Flattop with PowerLock
- Battery: SRAM AXS rechargeable battery and charger included
- App Compatibility: SRAM AXS
- Frame: compatible derailleur hanger and flat-mount disc brake frame; UDH not required
- Freehub: compatible Shimano/SRAM HG 11-speed road freehub required
- Crank lengths: 160, 165, 170, 172.5 or 175mm
- Optional rotors: no rotors, 2 × 160mm, or 160/140mm. Rotors included only when selected.
- Bottom bracket: SRAM DUB Wide, sold separately
Who It’s For?
Who It’s For?
Designed for gravel racers, endurance riders, and bikepackers seeking wireless precision, wide-range gearing, and dependable braking in a simplified 1× platform.
Want this professionally fitted?
Want this professionally fitted?
The Bike Lab offers expert installation and servicing in and around Surrey and West Sussex. Book today, enquire at TheBikeLabWorkshop@gmail.com or view our services.
Share
FAQ
Are SRAM AXS batteries included with SRAM groupsets?
Yes, SRAM AXS groupsets typically include at least one rechargeable AXS battery and charger unless otherwise stated. Always check the “What’s Included” section on the product page for confirmation.
Are SRAM AXS groupsets compatible with all frames?
No. This Apex XPLR AXS 12-speed groupset requires a compatible derailleur hanger, flat-mount disc brake mounts, a Shimano/SRAM HG 11-speed road freehub and a suitable SRAM DUB Wide bottom bracket. It does not require a UDH frame or an XDR freehub. The bottom bracket is sold separately. Contact The Bike Lab for help checking compatibility.
Do SRAM 1× drivetrains require a front derailleur?
No. SRAM 1× drivetrains are designed to run without a front derailleur, simplifying setup, reducing weight, and improving reliability — especially for gravel and mixed-terrain riding.
How long does delivery take?
Orders are typically dispatched within 1–2 working days, with UK delivery usually arriving within 2–5 working days depending on the shipping option selected.
Do you offer professional installation?
Yes. We offer professional installation and servicing through The Bike Lab in and around Surrey and West Sussex. You can book a service or contact us directly to arrange fitting for your new components.
