Shimano Ultegra R8170 12 Speed Disc Groupset – Di2 Electronic Road Bike Groupset
Shimano Ultegra R8170 12 Speed Disc Groupset – Di2 Electronic Road Bike Groupset
Couldn't load pickup availability
The Shimano Ultegra R8170 12-speed disc road groupset pairs precise electronic shifting with hydraulic disc brakes for club rides, sportives and racing. Its 2×12-speed drivetrain offers a broad choice of road gearing, with a balance of performance and value that suits an ambitious upgrade or a new build.
A bike that feels right makes you want to ride it more. The Bike Lab can help you choose an Ultegra setup around your usual routes and the parts you already own, with straightforward advice from an independent business that’s here to help before and after your order.
Built for the road
HYPERGLIDE+ gearing supports smooth changes while you pedal, helping you settle into a comfortable rhythm as the road changes. The HOLLOWTECH II chainset and adjustable-reach hydraulic levers suit everything from quick evening rides to long days in the saddle.
The semi-wireless Di2 system connects the shifters wirelessly to the rear derailleur, while both derailleurs are wired to the internal battery. Compatible settings and shift functions can be personalised through Shimano’s E-TUBE PROJECT Cyclist app.

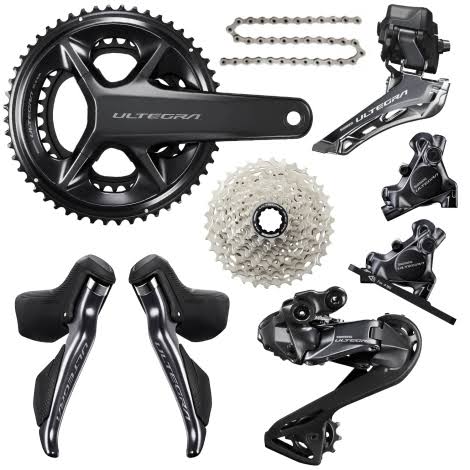

What’s included
- ST-R8170 left and right shift/brake levers with BR-R8170 flat-mount hydraulic disc calipers
- RD-R8150 rear and FD-R8150 front derailleurs
- FC-R8100 HOLLOWTECH II double crankset in your selected length and ratio
- CS-R8101 cassette in your selected ratio
- CN-M8100 126-link chain with quick link
- BT-DN300 internal rechargeable Di2 battery
- EW-EC300 charging cable
- EW-SD300 electric wires, 900mm and 1600mm
Choose your setup
Crank lengths: 160, 165, 170, 172.5 or 175mm.
Chainrings: 46/36T, 50/34T or 52/36T.
Cassette: 11–30T or 11–34T.
Optional rotors: select no rotors, two 160mm rotors, or a 160mm front / 140mm rear pair in the Cassette and Rotors menu. The Ultegra RT-CL800 CENTER LOCK rotor package includes internal lockrings and adds £80 for the pair. Rotors are included only when selected. Available combinations are shown in the selectors.
Compatibility and support
Requires a suitable road frame with flat-mount disc brake mounts, compatible front and rear derailleur fittings, and a freehub compatible with your selected Shimano 12-speed road cassette. The 24mm crank spindle needs the correct HOLLOWTECH II-compatible road bottom bracket for your frame. Your frame must also accommodate the internal Di2 battery and derailleur wiring.
Bottom bracket sold separately. No power meter included.
For help choosing gearing or checking compatibility, get in touch with your bike’s make, model, year and current setup. The Bike Lab can help you work through the details before ordering.
UK delivery only.
Specification:
Specification:
- Drivetrain: Shimano Ultegra R8170, 2×12-speed road
- Shifting: Di2 electronic; wireless shifters with wired derailleurs and internal battery
- Levers: ST-R8170
- Brake calipers: BR-R8170, hydraulic disc, flat-mount
- RD-R8150 rear derailleur; FD-R8150 front derailleur
- Crankset: FC-R8100, HOLLOWTECH II, standard non-power-meter version
- Crank lengths: 160, 165, 170, 172.5 or 175mm
- Chainrings: 46/36T, 50/34T or 52/36T
- Cassette: CS-R8101, 11–30T or 11–34T
- Chain: CN-M8100 126-link chain with quick link
- Battery: BT-DN300 included
- Charging cable: EW-EC300 included
- Electric wires: EW-SD300, 900mm and 1600mm included
- Rotors: Ultegra RT-CL800, only included when selected
- Bottom bracket: suitable Shimano road 24mm HOLLOWTECH II type, sold separately
- Power meter: not included
Who's it for?
Who's it for?
For keen road riders who want Shimano Di2 for fast club rides, sportives or racing. Ultegra is a good fit for a performance road build used heavily for both training and events.
Want this professionally fitted?
Want this professionally fitted?
The Bike Lab offers expert installation and servicing in and around Surrey and West Sussex. Book today, enquire at TheBikeLabWorkshop@gmail.com or view our services.
