Shimano GRX RX827 Di2 1x12 Wireless Gravel Groupset

Shimano GRX RX827 Di2 1x12 Wireless Gravel Groupset

Crank Length
Chainring Size
Rotor Size
Regular price £949.99 GBP
Regular price £1,599.00 GBP Sale price £949.99 GBP
Sale Sold out
Taxes included.

The Shimano GRX RX827 Di2 1×12 wireless gravel groupset combines electronic shifting, hydraulic disc braking and wide-range 10–51T gearing for gravel rides, racing and adventures further from the tarmac. A single chainring keeps gear selection straightforward, with three sizes available to suit your riding.

There’s a lot of freedom in a bike that can take the long way home. The Bike Lab can help you put together a GRX setup for the routes and adventures you have in mind, with personal advice on gearing and compatibility from an independent bicycle business. Your order helps keep that individual approach to bike building alive.

Built for gravel

The wireless RX827 rear derailleur uses Shimano’s SHADOW ES design to keep its profile tucked in, with a chain stabiliser for rough ground and automatic recovery after impacts. Its removable battery sits on the derailleur, so there’s no internal Di2 battery or shifting wire to route through the frame.

Gravel-specific lever ergonomics give you a secure hand position on uneven surfaces, while BR-RX820 hydraulic disc brakes offer controlled braking on loose descents. The right lever controls shifting; the supplied left lever is brake-only. Compatible shift settings can be personalised in Shimano’s E-TUBE PROJECT Cyclist app.

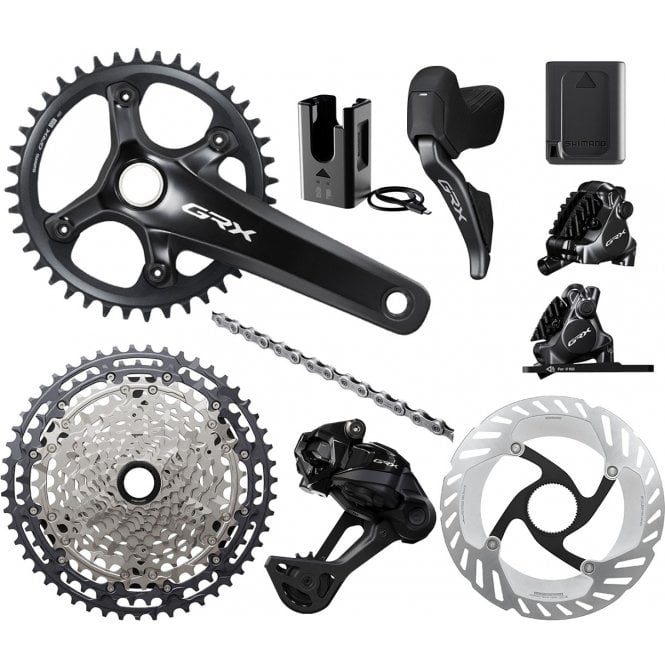

What’s included

  • GRX FC-RX820-1 HOLLOWTECH II single crankset in your selected length and chainring size
  • Shimano 12-speed 10–51T MICRO SPLINE cassette
  • Shimano 12-speed chain
  • GRX RD-RX827-SGS wireless Di2 rear derailleur
  • GRX ST-RX825 right shift/brake lever
  • GRX BL-RX825 left brake lever
  • BR-RX820 front and rear hydraulic disc brake calipers
  • BT-DN320 removable derailleur battery
  • EC-DN100 battery charger

Choose your setup

Crank lengths: 160, 165, 170, 172.5 or 175mm.

Chainring: 42T, 44T or 46T, paired with a 10–51T cassette. A smaller chainring favours lower climbing gears; a larger ring shifts the overall gearing higher.

Optional rotors: choose no rotors, two 160mm rotors, or a 160mm front / 140mm rear pair using the rotor selector. Rotors are included only when a rotor option is selected.

Compatibility and support

Requires a MICRO SPLINE freehub, suitable flat-mount disc brake mounts and a compatible rear derailleur hanger. The 24mm crank spindle needs the correct HOLLOWTECH II-compatible bottom bracket for your frame. Check chainring clearance and, when selecting rotors, your hub mounting standard and the rotor sizes approved for your frame and fork.

Bottom bracket sold separately. No power meter included.

For help choosing your gearing or checking an existing bike, get in touch with its make, model, year and current setup. The Bike Lab can help you work through the details before ordering.

UK delivery only.

Specification:

  • Drivetrain: Shimano GRX RX827 Di2, 1×12-speed
  • Shifting: fully wireless electronic Di2
  • Rear derailleur: RD-RX827-SGS, SHADOW ES, for 10–51T cassette
  • Right lever: ST-RX825 Di2 shift/brake lever
  • Left lever: BL-RX825 brake-only lever
  • Brakes: BR-RX820 hydraulic disc calipers, flat-mount
  • Crankset: FC-RX820-1 HOLLOWTECH II, no power meter
  • Crank lengths: 160, 165, 170, 172.5 or 175mm
  • Chainring options: 42T, 44T or 46T
  • Cassette: Shimano 12-speed, 10–51T
  • Freehub required: MICRO SPLINE
  • Chain: Shimano 12-speed
  • Battery: BT-DN320, included
  • Charger: EC-DN100, included
  • Rotors: optional two 160mm, or 160mm front / 140mm rear; supplied only when selected
  • Bottom bracket: suitable Shimano 24mm HOLLOWTECH II-compatible type, sold separately

Who's it for?

For gravel riders and bikepackers who want simple 1× gearing and a low gear for steep climbs or loaded rides. It suits mixed terrain and riders who want wireless rear shifting.
