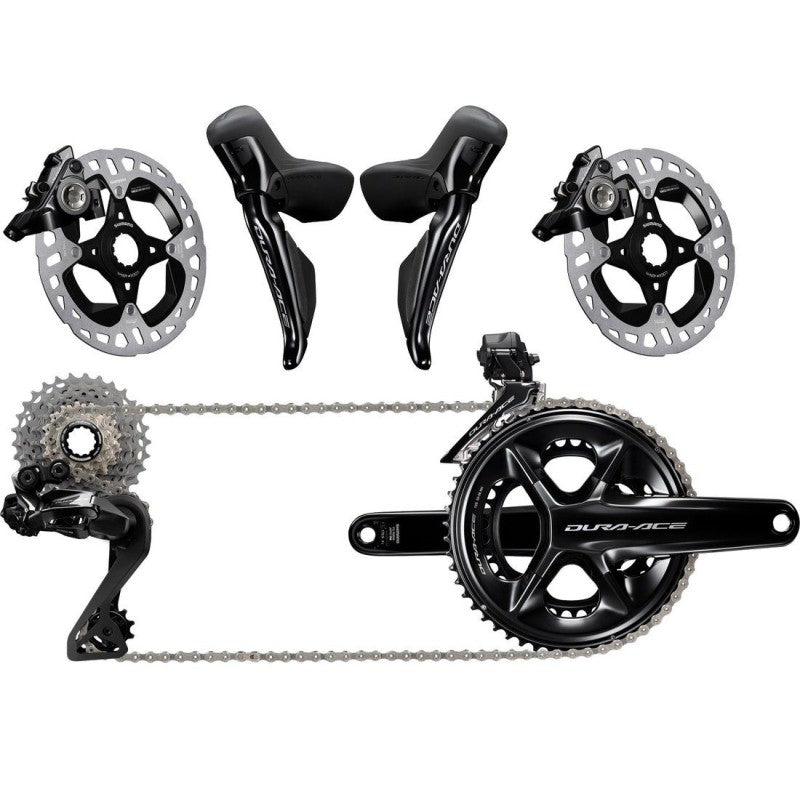

Shimano Dura-Ace R9270 12 Speed Disc Groupset – Di2 Electronic Road Bike Groupset

Shimano Dura-Ace R9270 12 Speed Disc Groupset – Di2 Electronic Road Bike Groupset

Crank Length
Chainset Ratio
Cassette and Rotors
Regular price £1,799.00 GBP
Regular price £3,519.00 GBP Sale price £1,799.00 GBP
Sale Sold out
Taxes included.

The Shimano Dura-Ace R9270 12-speed disc road groupset brings Shimano’s flagship electronic shifting and hydraulic disc braking to race bikes and carefully considered road builds. The 2×12-speed drivetrain offers closely spaced ratios, responsive gear changes and a choice of gearing for fast rides and demanding climbs.

Some builds are worth taking your time over. The Bike Lab can help you plan a Dura-Ace upgrade around the frame you love, checking the details before the parts arrive and helping your dream build come together. Every order supports an independent bicycle business.

Built for the road

Dura-Ace combines a lightweight HOLLOWTECH II chainset with electronic front and rear shifting. HYPERGLIDE+ gearing helps you change smoothly while pedalling, and the adjustable-reach hydraulic brake levers give you control on descents and longer rides.

The semi-wireless Di2 system connects the shifters wirelessly to the rear derailleur, while both derailleurs are wired to the internal battery. Compatible settings and shift functions can be personalised through Shimano’s E-TUBE PROJECT Cyclist app.

What’s included

  • ST-R9270 left and right shift/brake levers with BR-R9270 flat-mount hydraulic disc calipers
  • RD-R9250 rear and FD-R9250 front derailleurs
  • FC-R9200 HOLLOWTECH II double crankset in your selected length and ratio
  • CS-R9200 cassette in your selected ratio
  • CN-M9100 126-link chain with quick link
  • BT-DN300 internal rechargeable Di2 battery
  • EW-EC300 charging cable
  • EW-SD300 electric wires, 900mm and 1600mm

Choose your setup

Crank lengths: 160, 165, 167.5, 170, 172.5 or 175mm.

Chainrings: 50/34T, 52/36T or 54/40T.

Cassette: 11–30T or 11–34T.

Optional rotors: select no rotors, two 160mm rotors, or a 160mm front / 140mm rear pair in the Cassette and Rotors menu. The Dura-Ace RT-CL900 CENTER LOCK rotor package includes internal lockrings and adds £90 for the pair. Rotors are included only when selected. Available combinations are shown in the selectors.

Compatibility and support

Requires a suitable road frame with flat-mount disc brake mounts, compatible front and rear derailleur fittings, and a freehub compatible with your selected Shimano 12-speed road cassette. The 24mm crank spindle needs the correct HOLLOWTECH II-compatible road bottom bracket for your frame. Your frame must also accommodate the internal Di2 battery and derailleur wiring.

Bottom bracket sold separately. No power meter included.

For help choosing gearing or checking compatibility, get in touch with your bike’s make, model, year and current setup. The Bike Lab can help you work through the details before ordering.

UK delivery only.

Specification:

  • Drivetrain: Shimano Dura-Ace R9270, 2×12-speed road
  • Shifting: Di2 electronic; wireless shifters with wired derailleurs and internal battery
  • Levers: ST-R9270
  • Brake calipers: BR-R9270, hydraulic disc, flat-mount
  • RD-R9250 rear derailleur; FD-R9250 front derailleur
  • Crankset: FC-R9200, HOLLOWTECH II, standard non-power-meter version
  • Crank lengths: 160, 165, 167.5, 170, 172.5 or 175mm
  • Chainrings: 50/34T, 52/36T or 54/40T
  • Cassette: CS-R9200, 11–30T or 11–34T
  • Chain: CN-M9100 126-link chain with quick link
  • Battery: BT-DN300 included
  • Charging cable: EW-EC300 included
  • Electric wires: EW-SD300, 900mm and 1600mm included
  • Rotors: Dura-Ace RT-CL900, only included when selected
  • Bottom bracket: suitable Shimano road 24mm HOLLOWTECH II type, sold separately
  • Power meter: not included

Who's it for?

For road racers and riders building a flagship Shimano road bike. Dura-Ace Di2 fits a performance-focused build where low weight and electronic shifting matter.

Want this professionally fitted?

The Bike Lab offers expert installation and servicing in and around Surrey and West Sussex. Book today, enquire at TheBikeLabWorkshop@gmail.com or view our services.
