Shimano 105 R7120 12 Speed Disc Groupset – Mechanical Hydraulic Road Bike Groupset
Shimano 105 R7120 12 Speed Disc Groupset – Mechanical Hydraulic Road Bike Groupset
Couldn't load pickup availability
The Shimano 105 R7120 12-speed disc road groupset combines cable-operated 2×12-speed shifting with hydraulic disc braking for everyday road riding, sportives and longer adventures. A choice of compact or mid-compact chainrings and wide-range cassettes lets you tailor the gearing to your riding.
Getting more enjoyment from your bike doesn’t have to mean choosing the most expensive parts. The Bike Lab can help you make a practical 105 upgrade that fits your budget and riding plans, with personal advice and support from an independent bicycle business.
Built for the road
Mechanical Dual Control levers give you familiar, positive gear changes without electronic shifting batteries. The HOLLOWTECH II chainset and 12-speed drivetrain offer versatile gearing, while hydraulic disc brakes provide controlled stopping in changing conditions.

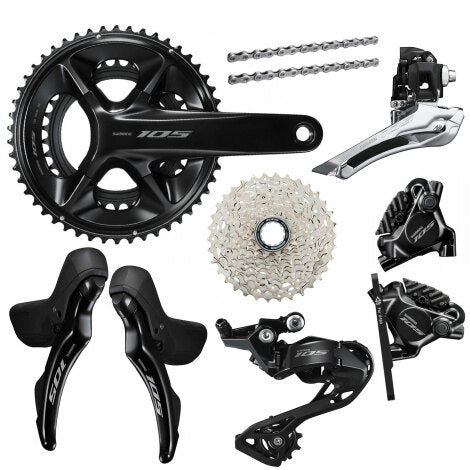

What’s included
- ST-R7120 left and right shift/brake levers with BR-R7170 flat-mount hydraulic disc calipers
- RD-R7100 rear and FD-R7100 front derailleurs
- FC-R7100 HOLLOWTECH II double crankset in your selected length and ratio
- Shimano 12-speed road cassette in your selected ratio
- Shimano 12-speed chain
Choose your setup
Crank lengths: 160, 165, 170, 172.5 or 175mm.
Chainrings: 50/34T or 52/36T.
Cassette: 11–34T or 11–36T.
Brake rotors are sold separately.
Compatibility and support
Requires a suitable road frame with flat-mount disc brake mounts, compatible front and rear derailleur fittings, and a freehub compatible with your selected Shimano 12-speed road cassette. The 24mm crank spindle needs the correct HOLLOWTECH II-compatible road bottom bracket for your frame. Your frame must support mechanical gear-cable routing.
Bottom bracket sold separately. No power meter included.
For help choosing gearing or checking compatibility, get in touch with your bike’s make, model, year and current setup. The Bike Lab can help you work through the details before ordering.
UK delivery only.
Specification:
Specification:
- Drivetrain: Shimano 105 R7120, 2×12-speed road
- Shifting: cable-operated mechanical
- Levers: ST-R7120
- Brake calipers: BR-R7170, hydraulic disc, flat-mount
- RD-R7100 rear derailleur; FD-R7100 front derailleur
- Crankset: FC-R7100, HOLLOWTECH II, standard non-power-meter version
- Crank lengths: 160, 165, 170, 172.5 or 175mm
- Chainrings: 50/34T or 52/36T
- Cassette: Shimano 12-speed road, 11–34T or 11–36T
- Chain: Shimano 12-speed chain
- Electronic shifting battery and charger: not required
- Rotors: sold separately
- Bottom bracket: suitable Shimano road 24mm HOLLOWTECH II type, sold separately
- Power meter: not included
Who's it for?
Who's it for?
For road riders and home mechanics who prefer cable-actuated shifting with hydraulic disc brakes. This 105 groupset suits everyday training, club rides and endurance road builds.
Want this professionally fitted?
Want this professionally fitted?
The Bike Lab offers expert installation and servicing in and around Surrey and West Sussex. Book today, enquire at TheBikeLabWorkshop@gmail.com or view our services.
